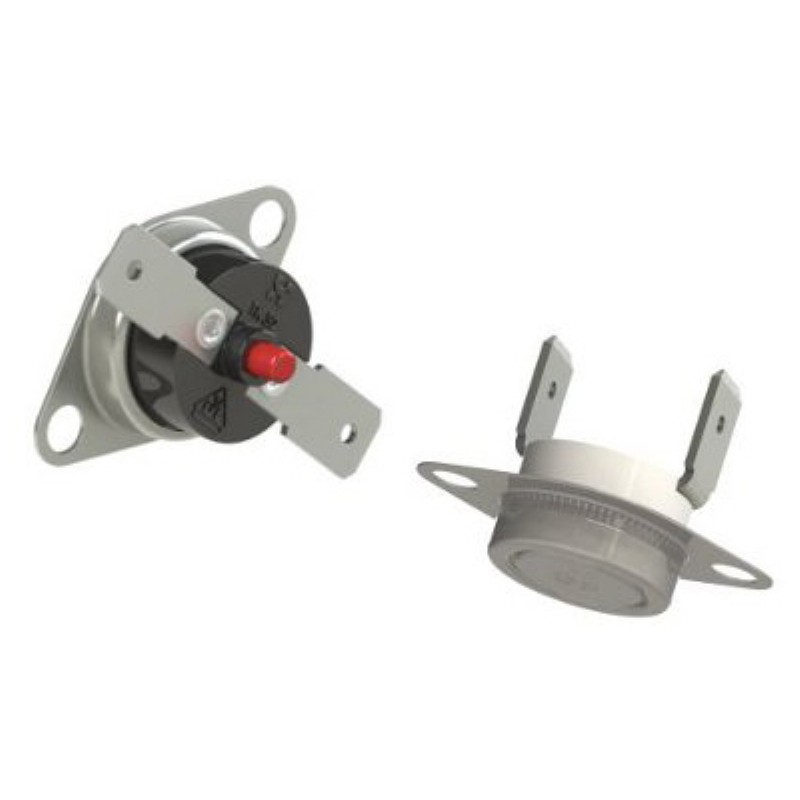

Bimetallic switch TK 24

Area of Application
Our new TK 24 / TK 32 has a great variety of types. Due to small size, high reliability, independence of location and the fact that it is totally maintenance-free, our thermo switch is the ideal instrument for perfect thermal protection.
You can find our thermal protectors and limiter in different household appliances and industrial applications.

Function
The product range of TK 24 / TK 32 is very wide.
The thermal switch operates independently from any current supply.
The thermal operation system works by means of ceramic pin separated from the contact system galvanically.
The housing, the covering cap and the attachments are free of voltage.
TK 24 / TK 32 only react when external thermal heating affects them.
The thermal coupling to the source of heat is effected by means of a bimetal disc lying directly below the metallic covering cap.
Due to small size, high reliability, independence of location and the fact that it is totally maintenance-free, a TK 24 / TK 32 is the ideal instrument for perfect thermal protections.

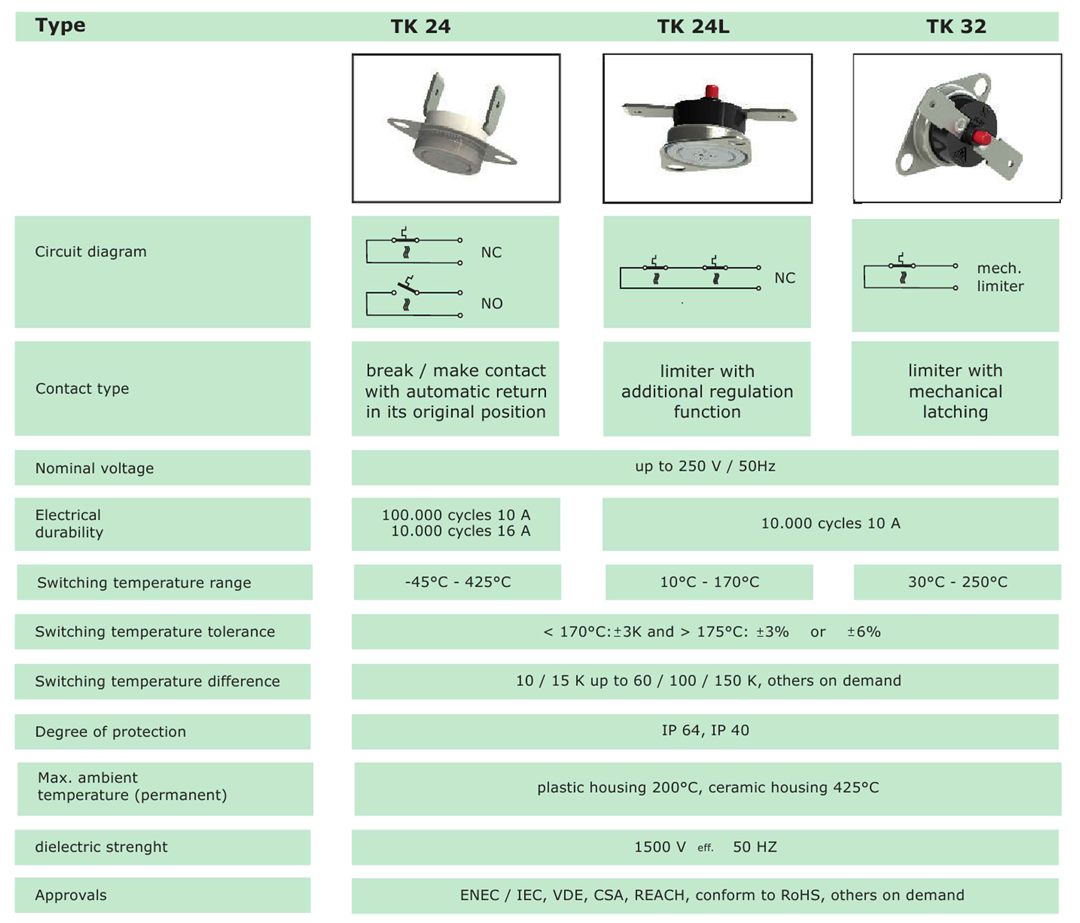

Contact Types
TK 24 NC – break contact which will automatically return into its original position
TK 24 NO – make contact which will automatically return into its original position
TK 24 L NC – limiter with mechanical latching and additional regulation function
TK 32 NC – limiter with mechanical latching
